Downloads

Print the housing

The parts on our own feeder, as source and as printable files. Free, because a product that needs you to buy its box reaches the people who can afford the box.

What these are

A branch that is not a branch, and a box that keeps water out

The tree kit is a false branch holding the thermal camera, a tilt hinge strong enough to stay where you point it, and a holder that straps the phone to the trunk below. The branch exists because a camera that looks like a camera invites attention; one that looks like a stub of wood does not.

The sealed housing is the alternative for wet places: a clamshell with an O‑ring round the lens barrel, a pocket for desiccant, a tongue-and-groove joint with a drain channel that slopes forward, and a visor with a drip groove. The cable leaves downward through a spout.

Measure before you print. Every dimension is a default taken from one Thermal Master T2 Max and one Oukitel WP61. The source says so in capitals at the top, and it is parametric for exactly this reason — change the numbers, not the geometry.

The printed housing and camera arm mounted on a post, seen close. — The parts below, on the post. Printed, bolted, and out in the rain since October.

Files

Source first, prints second

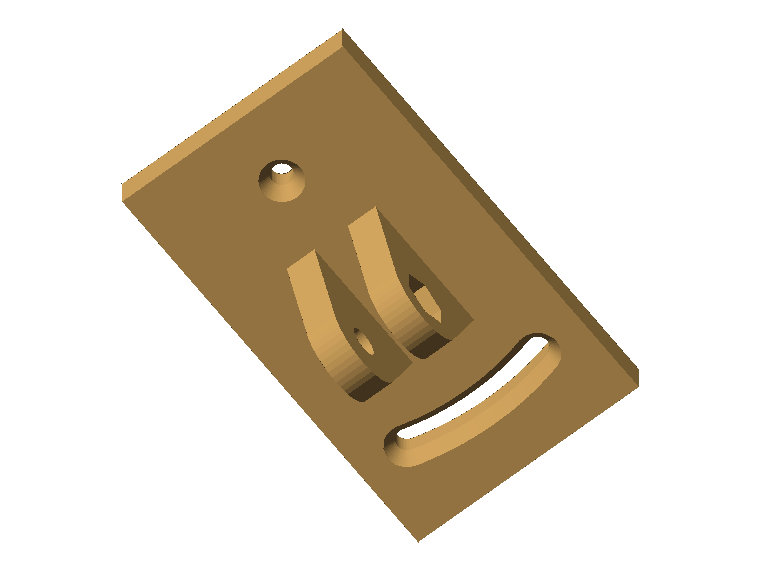

Rendered view of the tree base: a flat plate with a two-eared fork, a bolt hole and a curved cable slot. — **tree_tree_base**
The fork that screws to the trunk. 56 × 96 × 34 mm.

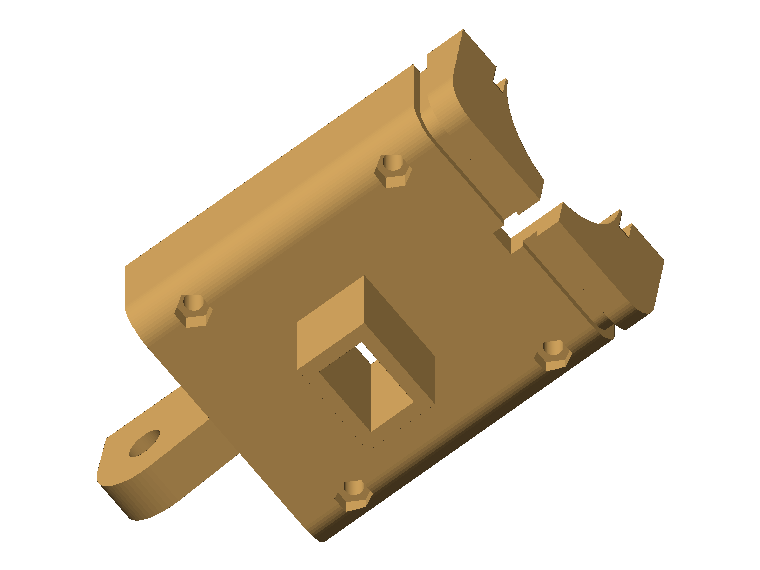

Rendered view of the lower housing half, showing four bolt bosses, the camera cavity, a cable spout and the hinge tab. — **sealed_housing_bottom**
Groove, drain and hinge tab. 95 × 54 × 39 mm.

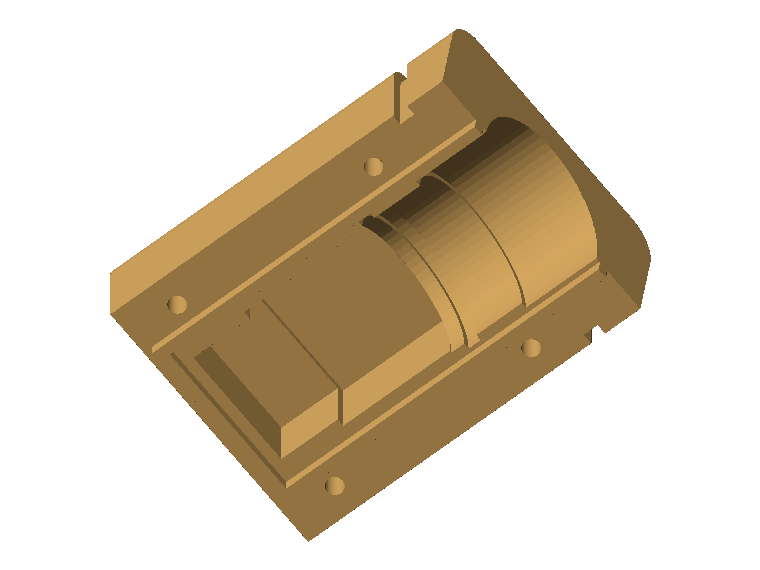

Rendered view of the upper housing half, with the visor at the front and the tongue running along both sides. — **sealed_housing_top**
Tongue and visor. 74 × 54 × 24 mm.

The OpenSCAD source is the real thing: open it, type your own measurements, press F6, export. The STLs are what our own prototypes are printed from, so they fit our camera and our phone and may not fit yours.

File	What it is
strixeo-tree-kit.scad	False branch, tilt hinge, tree base and phone holder. Set `part` and export each separately.	13 kB
strixeo-sealed-housing.scad	The sealed clamshell, both halves.	9 kB
tree_tree_base.stl	The fork that screws to the trunk. 56 × 96 × 34 mm.	298 kB
sealed_housing_bottom.stl	Lower half, with the groove and the drain. 95 × 54 × 39 mm.	430 kB
sealed_housing_top.stl	Upper half, with the tongue and the visor. 74 × 54 × 24 mm.	521 kB

The branch halves and the phone holder are in the source but not exported here — they are the parts most likely to need your own measurements anyway.

Before you start

What else you need

Material

PETG or CPE, six walls on the hinge parts — practically solid. PLA will not survive a summer outdoors; it softens in a sunlit black housing and creeps under load.

Tree kit hardware

1× M6 × 30 bolt, M6 nut captured in the fork, and a washer. 4× wood screws, 4–4.5 mm, into the trunk.

Sealed housing hardware

4× M3 × 30 bolts and nuts, placed outside the seal line so the clamping is even. One 26 × 2 mm O‑ring round the lens barrel, and desiccant for the pocket. Seal the spout around your own cable.

Licence

Take them, change them, print them, sell the prints. If you improve the drainage we would genuinely like to hear about it.
